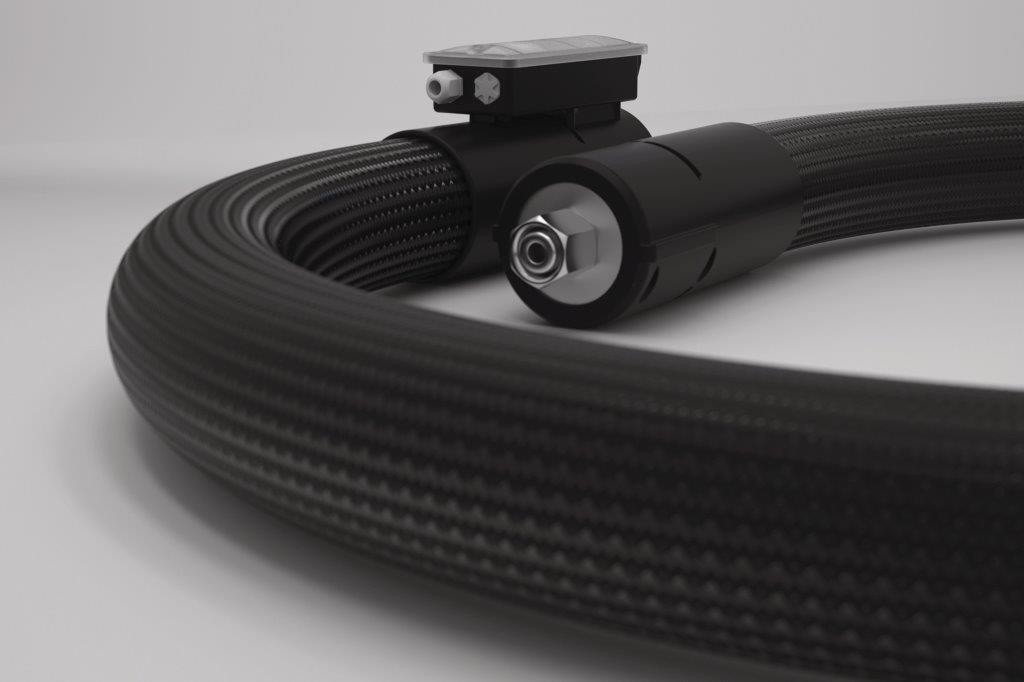

Templine Heated Hoses
click to enlarge
- Description
• Electrically heated hose systems for applications up to +300ºC
• Choice of inner hose for wide variety of uses in sizes 4mm to 50mm- Properties
• High mechanical flexibility
• Four heating cables with four circuits
• Unique termination design prevents heat loss
• Pressure resistance up to 500 bar
• Temperature handling up to +300°C
• Hose diameter 4mm up to 50mm
• Hose length 600mm up to 20m
• Standard and custom fittings
• Optional built in temperature control
• Bespoke hose design service- Applications
• Anti-freeze, maintaining and increasing of temperatures for gases, granules and liquids of varying viscosity in temperature range -190 °C to +200 °C.
- Colour
- NA
- Size Range
- 4mm to 50mm
- Temp Range
- up to +300 °C. depending on core hose type
- Options
• Protection Class I, Protection Type IP65
• Heating System based on fixed heat resistors (=constant, temperature-independent heating of transport media)
• For integrated temperature controller Maximum Switch capacity per unit: 1360 VA Nominal voltages: 12, 24, 115 and 230 V =/~
